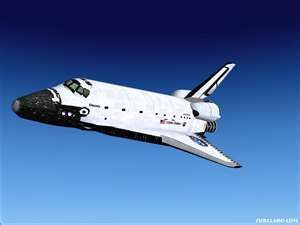

Space Shuttle Image

Space Shuttle





The Space Shuttle was a partially reuseable launch system and orbital spacecraft operated by the U.S. National Aeronautics and Space Administration (NASA) for human spaceflight missions from 1981 to 2011. The system combined rocket launch, orbital spacecraft, and re-entry spaceplane with modular add-ons. The first of four orbital test flights occurred in 1981 leading to operational flights beginning in 1982, all launched from the Kennedy Space Center, Florida. The system was retired from service in 2011 after 135 missions; on July 8, 2011, with Space Shuttle Atlantis performing that 135th launch - the final launch of the three-decade Shuttle program. The program ended after Atlantis landed at the Kennedy Space Center on July 21, 2011. Major missions included launching numerous satellites and interplanetary probes, conducting space science experiments, and servicing and construction of space stations. Enterprise was a prototype orbiter used for atmospheric testing during development in the 1970s, and lacked engines and heat shield. Five space-worthy orbiters were built—two were destroyed in accidents and the others have been retired.

It was used for orbital space missions by NASA, the U.S. Department of Defense, the European Space Agency, Japan, and Germany. The United States funded Space Transportation System (STS) development and Shuttle operations except for Spacelab D1 and D2 — sponsored by West Germany and reunified Germany respectively. In addition, SL-J was partially funded by Japan.

At launch, it consisted of the "stack", including a dark orange-colored external tank (ET); two white, slender Solid Rocket Boosters (SRBs); and the Orbiter Vehicle (OV), which contained the crew and payload. Some payloads were launched into higher orbits with either of two different booster stages developed for the STS (single-stage Payload Assist Module or two-stage Inertial Upper Stage). The Space Shuttle was stacked in the Vehicle Assembly Building and the stack mounted on a mobile launch platform held down by four explosive bolts on each SRB which are detonated at launch.

The Shuttle stack launched vertically like a conventional rocket. It lifted off under the power of its two SRBs and three main engines, which were fueled by liquid hydrogen and liquid oxygen from the external tank. The Space Shuttle had a two-stage ascent. The SRBs provided additional thrust during liftoff and first-stage flight. About two minutes after liftoff, explosive bolts were fired, releasing the SRBs, which then parachuted into the ocean, to be retrieved by ships for refurbishment and reuse. The Shuttle orbiter and external tank continued to ascend on an increasingly horizontal flight path under power from its main engines. Upon reaching 17,500 mph (7.8 km/s), necessary for low Earth orbit, the main engines were shut down. The external tank was then jettisoned to burn up in the atmosphere. After jettisoning the external tank, the orbital maneuvering system (OMS) engines were used to adjust the orbit.

The orbiter carried people and payload such as satellites or space station parts into low Earth orbit, into the Earth's upper atmosphere or thermosphere. Usually, five to seven crew members rode in the orbiter. Two crew members, the commander and pilot, were sufficient for a minimal flight, as in the first four "test" flights, STS-1 through STS-4. The typical payload capacity was about 22,700 kilograms (50,000 lb), but could be increased depending on the choice of launch configuration. The orbiter carried its payload in a large cargo bay with doors that opened along the length of its top, a feature which made the Space Shuttle unique among spacecraft. This feature made possible the deployment of large satellites such as the Hubble Space Telescope, and also the capture and return of large payloads back to Earth.

When the orbiter's space mission was complete, it fired its OMS thrusters to drop out of orbit and re-enter the lower atmosphere. During descent, the orbiter passed through different layers of the atmosphere and decelerates from hypersonic speed primarily by aerobraking. In the lower atmosphere and landing phase, it was more like a glider but with reaction control system (RCS) thrusters and fly-by wire-controlled hydraulically-actuated flight surfaces controlling its descent. It landed on a long runway as a spaceplane. The aerodynamic shape was a compromise between the demands of radically different speeds and air pressures during re-entry, hypersonic flight, and subsonic atmospheric flight. As a result, the orbiter had a relatively high sink rate at low altitudes, and it transitioned during re-entry from using RCS thrusters at very high altitudes to flight surfaces in the lower atmosphere.
